9K714 Oka

[carrey]

http://foto.inbox.lv/carrey/oka



1/35 scale, scratchbuild of polystyrene only. Still in progress.



Please submit any information on this subject (manuals, photos, walkarounds, drawings, schemas etc)!

[paffko]

Nice

[TankRed1070]

Hi,

Intersting project. It will be rally a monster. Especially in 1/35.



When I tried to google some infos I found quite a lot of photos. I guess enough to make a model but I belive that you know them already.

Try to ask on militaryphotos.net and good luck.



BTW: it will be very interesting to follow your project so please keep us up to date.



Cheers

[Jendrass1]

oohhoo looks promising. I`ll drop in to see the progress.

All the best over working on this model !

[Thomson9]

Very curious project.I wait on more far reports

[carrey]

thanks for your interest. updates are there every working day, approx 11:00 GMT. speaking of reference photos, i googled over, but found scarce information. there're only 4 good pictures made by some czech, and that's all. no interior, no weapon bay, no transmission close-ups. therefore, if someone can make good walkaround with camera, it could be helpful. as i know, there're many Oka's left in ex-Warszaw Pact countries.

[ArmiA]

It's very nice to see a scratchbuild in the age of resin and photo etched updates. And seeing a scratchbuild made with such precision really makes my heart sing!

Cheers.

[carrey]

how do you like last 22 pictures? 8)

[carrey]

Missile and ramp is ready, http://foto.inbox.lv/carrey/oka/IMG-7106.jpg and forth.

[Avi]

Holly Shit !!! Looks Great. I can't wait to see the final stage of this project



Stop swearing Avi or you will be punished!

Moderator a.k.a. Punisher

[Grzegorz]

Carrey... Спасибо, что ты выказываешь модель той пусковой установки также у нас.

[ShaDow FoX]

sehr GUT ! weiter weiter bitte

[Tomek Mroczkowski]

It is in what language to write?

[ShaDow FoX]

Naturlich, dass in der russischen sprache

[regis]

ohhhh crap ...

This is really GREAT !!!



BR,

k.

[carrey]

Fasten your seatbelts! http://foto.inbox.lv/carrey/oka/IMG-7177.jpg and forth on. Tell me if everything is ok with geometry, overall proportions and feeling of the prototype.

[ShaDow FoX]

how do you made a wheels ? You have bought ?

[carrey]

this model is 100% free of any aftermarket. absolutely everything is done from scratch.



wheels are easy done:



1) cut 13 circles of 1mm polystyrene for each wheel, glue together, press.

2) drill centre, put on screw, insert in proxxon micromot, lathe to torus.

3) draw protector trees, cut, glue to wheel.

4) bend protector to inside, press to table.

5) turn over, repeat for other side.

6) screw wheel on micromot again, lathe protector separators.

7) finish the wheel.



pictures of finished details for wheels will follow. you will piss hot of the level of details that can be done, far greater than trumpeter wheels. 8)

[carrey]

Check wheels at http://foto.inbox.lv/carrey/oka/IMG-7230.jpg and forth. I wish I could work for Tamiya-san... 8)

[SmokHaosu]

Indescribable !



For me that is unimaginable to make 13 full scratch wheels.

Wheels lake yours.

[carrey]

no no no, 8 wheels, each is 13 mm thick, therefore, to make 1 wheel I glue together 13 circles.

[SmokHaosu]

Sorry, my gaffe

You know, monday morning



But 8 wheels are not worse than 13

[carrey]

new pictures: http://foto.inbox.lv/carrey/oka/IMG-7300.jpg and forth on.

[Chudziutki]

WOW! Amazing job I hope that You'll finish it soon

[carrey]

The story continues...

http://www.mediafire.com/?765ylcppmk4vf

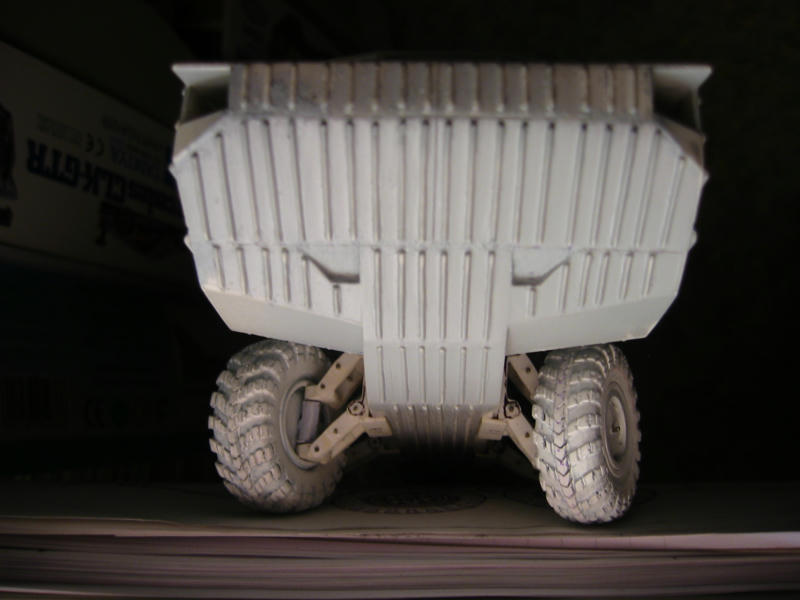

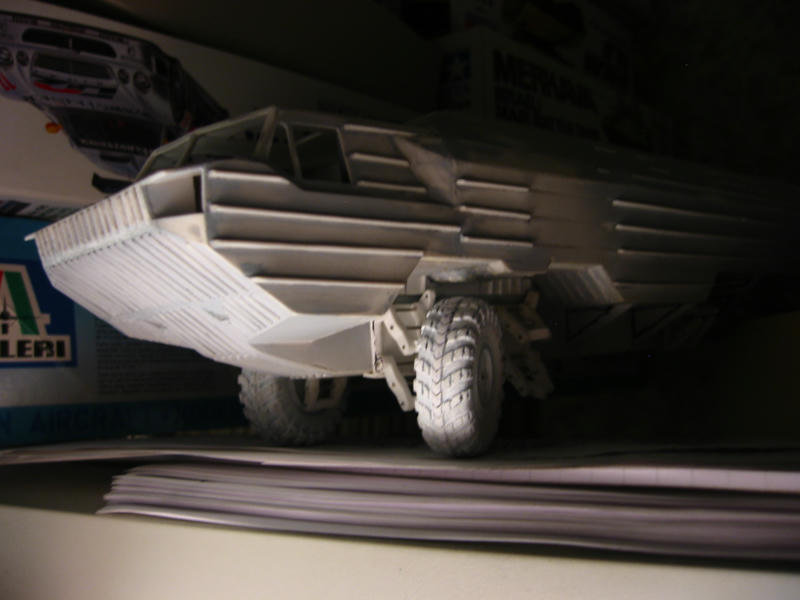

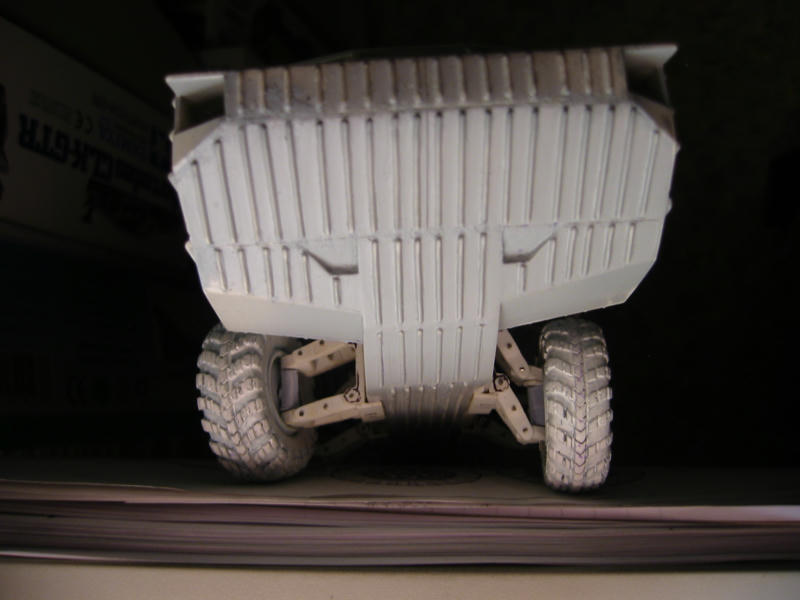

Fully working (articulating) suspension, torsion bars and shock absorbers will be added later. Transmission bars etc. internal stuff - still no information (anyone wants to visit Oka in Sofia and take alot of pictures? ), so gizmology proposed. Working on wheels - drawings miss 3 mm of wheels' width, therefore I must figure out how to make them more realistic and KrAZ-like without totally reworking all 8 pcs.
